    BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly

    Ask Lasest Price
    Brand Name : OTOTRI
    Model Number : BK1614
    Supply Ability : 10000pcs/week
    Price : 0.1~100$/pcs
    Delivery Time : 5-7 days after receiving your payment
    Certification : ISO
    Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal
    • Product Details
    • Company Profile

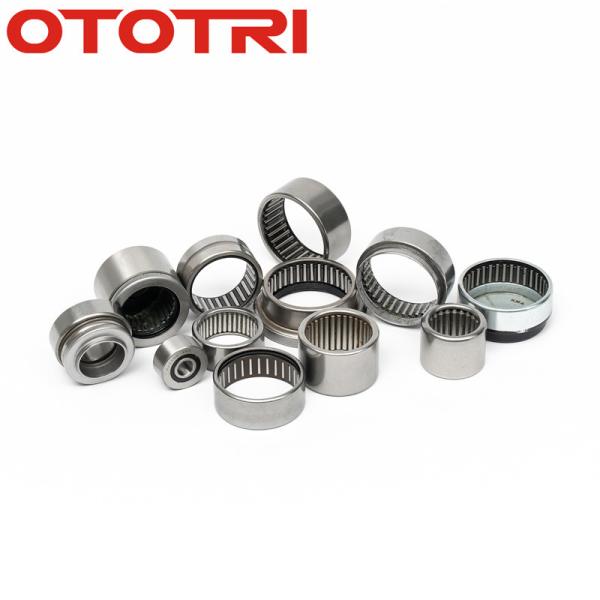

    BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly

    OTOTRI BK1614 BK1614RS Drawn Cup Needle Roller Bearings for Advanced Metallurgical Equipment
    Best Price BK1614 BK1614RS Drawn Cup Needle Roller Bearings BK Series 16x22x14mm Without Inner Ring For Metallurgical Equipment
    BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly
    Product Description
    Descriptions
    Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and needle roller assembly featuring small section height,big load capacity & rigidity,compact structure and small size,high rotating accuracy with the structure of disposed inner ring.

    Needle roller bearing is characterized by multiple structures,broad adaptability and easy installation.

    It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and etc. Various machinery equipment.
    With this kind of bearing,machine design can realize the goal of small-scale & light weight.

    Types of Designs:

    This kind of bearing has multiple structural styles for the choice of customers,such as narrow & broad series,with or without
    inner rings,cages,rib or sealings. It can be designed according to the special structural requirements of customers as well.

    Product Precision Accuracy:

    Dimensional tolerance and geometrical accuracy is based on GB/T5801.Mutual difference of needle roller diameter is 2 um,and the
    precision grade is class G2(ISO GB/T309)

    The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer ring with cage and roller assembly.

    Bearing radial running clearance conforms to the value defined by class 0 group of GB/T4604 Special precision grade in based on
    GB/T307.1

    For fuller information on the special requirement of bearing running clearance, inscribed circle and precision grade,please
    contact our company.

    Material:

    Material for needle roller is GCr15 bearing steel,quench-hardening HRC60-65
    Material for inner and outer rings is GCr15 bearing steel,quench-hardening HRC60-65
    Material for cages is quality low-carbon steel or reinforced nylon.

    Special Directions:

    Bearing running clearance and inner-cutting roundness should be regulated according to different conditions.

    Machine tolls should be used for press-in fitting or thermal fitting when install the bearing.Limited by plastic cages(suffixed
    with TN) and sealing-element material ,operating temperature is -30℃--+100℃

    For general-disposition design of bearings,refer to the relevant recommendation in the applied technology of roller bearings.
    Bearing Model
    Inside Dia.(mm)
    Outside Dia.(mm)
    Thickness(mm)
    Weight(KG)
    BK0306-TV
    3
    6.5
    6
    0.001
    BK0408
    4
    8
    8
    0.002
    BK0509
    5
    9
    9
    0.002
    BK0609
    6
    10
    9
    0.003
    BK0709
    7
    11
    9
    0.003
    BK0808
    8
    12
    8
    0.003
    BK0810
    8
    12
    10
    0.003
    BK0910
    9
    13
    10
    0.004
    BK0912
    9
    13
    12
    0.005
    BK1010
    10
    14
    10
    0.004
    BK1012
    10
    14
    12
    0.005
    BK1015
    10
    14
    15
    0.006
