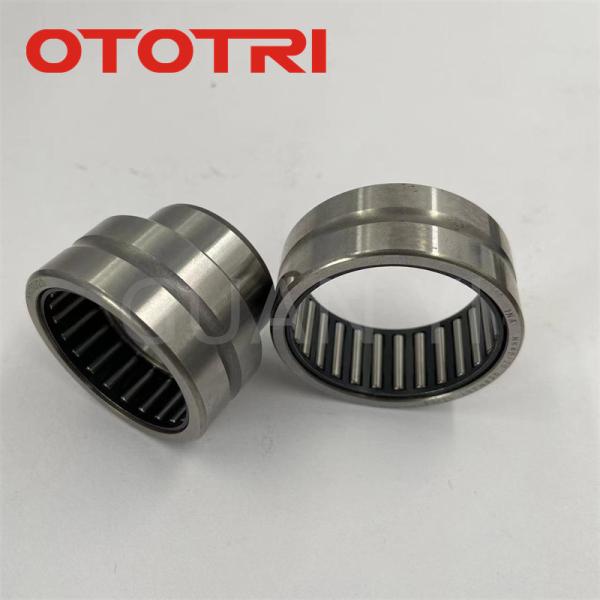

Needle Bearing List Catalogue Machined Needle Roller Bearing RNA4900 RS

Product Description

Needle roller bearing (solid ring needle roller bearing) The solid ring needle roller bearing is composed of a ring and a needle roller group with a cage. It has smaller volume and higher carrying capacity. Therefore, this kind of bearing can meet the requirements of light weight, small space and large transmission power. Depending on the application, bearings with or without aninner ring are availableInner ring needle roller bearings RNA, NK type

Needle roller bearings without inner ring are suitable for components with limited radial dimensions. Because there is no inner ring, the journal surface that matches it directly serves as the rolling surface. It is required that the surface hardness is not lower than HRC6O, and the surface roughness ra value is not more than 0.63um. This kind of bearing does not limit the axial displacement of the shaft or the shell, and the limit speed is high.

There are inner ring needle roller bearings NA, NKI type

This kind of solid ferrule needle roller bearing has no ribs on the inner ring, so the inner ring, the outer ring, the full set of
needle rollers and the cage can be installed separately without restricting the axial displacement of the shaft or the
housing.Because the cage separates the needle rollers and reduces friction, it can be used in components with higher rotational speeds.

Needle roller bearings without inner ring with cage
NA and NKI type bearings without inner ring are RNA and NK type needle roller bearings.
This kind of bearing has no inner ring and is suitable for the support structure with limited radial installation size, and the
journal matched with the bearing directly serves as the rolling surface. As the shaft of the raceway surface, the hardware must be hardened and ground, and only when it is processed to the appropriate size and shape accuracy, the complete set of needle roller bearings can achieve high life and running accuracy. At the same time, since there is no inner ring, the diameter of the shaft can also be appropriately increased, thereby increasing the rigidity.

Sealed needle roller bearings with or without inner ring
Needle roller bearings sealed on one or both sides can effectively prevent the intrusion of dirt, and the bearing has been filled with an appropriate amount of lithium-based grease. The inner ring of this type of bearing is wider than the outer ring, which enables the bearing to ensure a good seal even when the shaft has a slight displacement relative to the bearing housing to avoid contamination of the bearing. The inner ring of the bearing also has lubricating oil holes, which can be supplemented by the outer ring or the inner ring according to the needs of the configuration.

Product name	Lower Price Needle Roller Bearings Rna 4900 Rs Needle Bearing Price List Catalogue Rodamiento
Material	Chrome steel
Cage	Steel Cage Nylon Cage
Bore Dia	10mm
Outer Dia	22mm
Width	13mm
Service	OEM Accept
Package	Netural package or according to requirememt
Sample time	3--5 days
Production time	It depends on the quantity

Type	d mm	D mm	B mm	Weight(kg)
RNA4900	10	22	13	0.019
RNA4901	12	24	13	0.025
RNA4902	15	28	13	0.023
RNA4903	17	30	13	0.025
RNA4904	20	37	17	0.058
RNA4905	25	42	17	0.068
RNA4906	35	47	17	0.077
RNA4907	42	55	20	0.121
RNA4908	48	62	22	0.157
RNA4909	52	68	22	0.205
RNA4910	58	72	22	0.184
RNA4911	63	80	25	0.287
RNA4912	68	85	25	0.306
RNA4913	72	9o	25	0.307
RNA4914	80	100	30	0.465
RNA4915	85	105	30	0.487
RNA4916	90	110	30	0.515
RNA4917	100	120	35	0.669
RNA4918	105	125	35	0.695
RNA4919	110	130	35	0.728
RNA4920	115	140	40	1.09
RNA4922	125	150	40	1.17
RNA4924	135	165	45	1.75
RNA4926	150	180	50	2.16
RNA4928	160	190	5o	2.29
RNA6900	10	22	22	0.038

Recommend Products

1	Needle Roller and Cage Assemblies	K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
				PCJ
2	Needle Roller and Cage Assemblies for Connecting Rod	PK
				KBK
3	Drawn Cup Needle Roller Bearings	HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
				HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
				DCL
				HCK
4	Machined-Ring Needle Roller Bearings	RNA48, RNA49, RNA59, RNA69, NK, NKS
				NA48, NA49, NA59, NA69, NK+IR, NKS+IR
				MR
				MR+MI
				RNA49‥L, RNA49‥LL
				NA49‥L, NA49‥LL
5	Machine-ring Needle Roller Bearings Separable Type	RNAO, RNAO‥ZW
				NAO, NAO‥ZW
6	Self Aligning Needle Roller Bearings	RPNA‥R
				PNA‥R
7	Inner ring	IR
				MI
8	Clearance-Adjustable Needle Roller Bearings	RNA49‥S
				NA49‥S
9	Complex Bearings	NKX, NKX‥Z
				NKX+IR, NKX‥Z+IR
				NKXR, NKXR‥Z
				NKXR+IR, NKXR‥Z+IR
				NKIA
				NKIB
				AXN
				ARN
10	Cam Followers	KRM‥XH, KRMV‥XH
				KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
				KR, KR‥X, KR‥LL, KR‥XLL
				KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
				KRV, KRV‥X, KRV‥LL, KRV‥XLL
				KRT, KRT‥X, KRT‥LL, KRT‥XLL
				KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
				KRU, KRU‥X, KRU‥LL, KRU‥XLL
				KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
				NUKR‥H, NUKR‥XH
				NUKR, NUKR‥X
				NUKRT, NUKRT‥X
				NUKRU, NUKRU‥X
				CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
				CR, CR‥X, CR‥LL, CR‥XLL
				CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
				CRV, CRV‥X, CRV‥LL, CRV‥XLL
11	Roller Followers	RNAB2, RNAB2‥X
				NAB2, NAB2‥X
				RNA22‥LL, RNA22‥XLL
				NA22‥LL, NA22‥XLL
				NATR, NATR‥X, NATR‥LL, NATR‥XLL
				NATV, NATV‥X, NATV‥LL, NATV‥XLL
				NACV, NACV‥X, NACV‥LL, NACV‥XLL
				NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
				NUTW, NUTW‥X
12	Thrust Roller Bearings	AXK11, AS11, WS811, GS811
				811, 812, 893, 874, K811, K812, K893, K874, WS811
				WS812, WS893, WS874, GS811, GS812, GS893, GS874
				AXA21, ARA821, ZS
				AXB21, ARB821, ZS
13	One-way Clutches	HF
				HFL
