OTOTRI Combined Needle Roller Thrust Bearing NKIA NKIB 5901 5902 5903 5904 59/22

Ask Lasest Price
Brand Name :	OTOTRI
Model Number :	NKIB5901 5902 5903 5904 59/22
Supply Ability :	10000pcs/week
Price :	0.1~100$/pcs
Delivery Time :	5-7 days after receiving your payment
Certification :	ISO
Payment Terms :	L/C,T/T,Western Union,MoneyGram,Paypal

Add to Cart

Product Details
Company Profile

OTOTRI Combined Needle Roller Thrust Bearing NKIA NKIB 5901 5902 5903 5904 59/22

Product Description

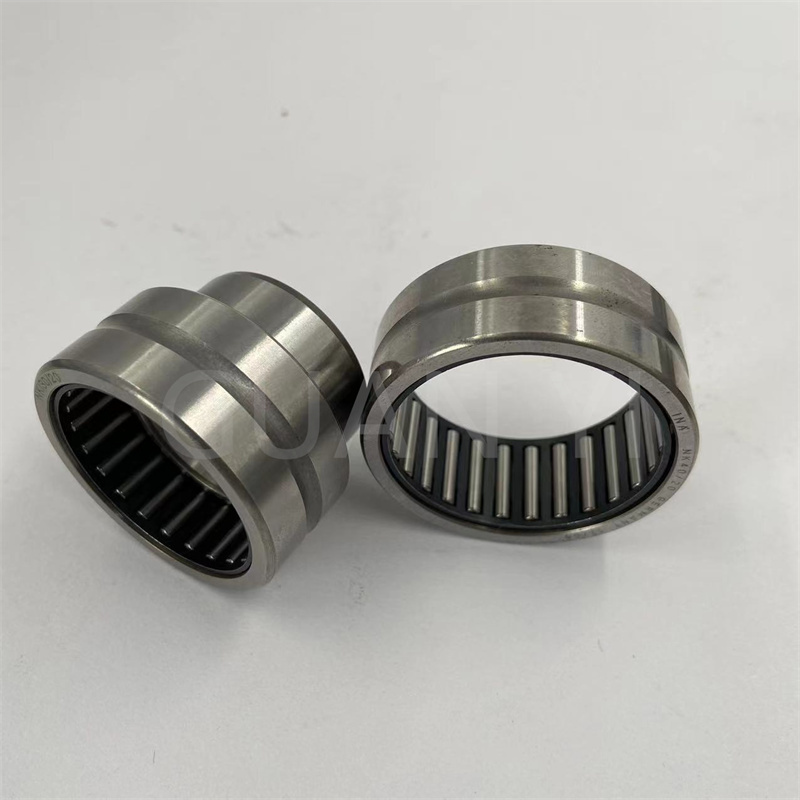

Needle roller bearing (solid ring needle roller bearing) The solid ring needle roller bearing is composed of a ring and a needle roller group with a cage. It has smaller volume and higher carrying capacity. Therefore, this kind of bearing can meet the requirements of light weight, small space and large transmission power. Depending on the application, bearings with or without aninner ring are availableInner ring needle roller bearings RNA, NK type

Needle roller bearings without inner ring are suitable for components with limited radial dimensions. Because there is no inner ring, the journal surface that matches it directly serves as the rolling surface. It is required that the surface hardness is not lower than HRC6O, and the surface roughness ra value is not more than 0.63um. This kind of bearing does not limit the axial displacement of the shaft or the shell, and the limit speed is high.

There are inner ring needle roller bearings NA, NKI type

This kind of solid ferrule needle roller bearing has no ribs on the inner ring, so the inner ring, the outer ring, the full set of
needle rollers and the cage can be installed separately without restricting the axial displacement of the shaft or the
housing.Because the cage separates the needle rollers and reduces friction, it can be used in components with higher rotational speeds.

Needle roller bearings without inner ring with cage
NA and NKI type bearings without inner ring are RNA and NK type needle roller bearings.
This kind of bearing has no inner ring and is suitable for the support structure with limited radial installation size, and the
journal matched with the bearing directly serves as the rolling surface. As the shaft of the raceway surface, the hardware must be hardened and ground, and only when it is processed to the appropriate size and shape accuracy, the complete set of needle roller bearings can achieve high life and running accuracy. At the same time, since there is no inner ring, the diameter of the shaft can also be appropriately increased, thereby increasing the rigidity.

Sealed needle roller bearings with or without inner ring
Needle roller bearings sealed on one or both sides can effectively prevent the intrusion of dirt, and the bearing has been filled with an appropriate amount of lithium-based grease. The inner ring of this type of bearing is wider than the outer ring, which enables the bearing to ensure a good seal even when the shaft has a slight displacement relative to the bearing housing to avoid contamination of the bearing. The inner ring of the bearing also has lubricating oil holes, which can be supplemented by the outer ring or the inner ring according to the needs of the configuration.

Product name	High Speed Brand High Quality NKIA NKIB 5901 5902 5903 5904 59/22 Needle Roller Bearing
Material	Chrome steel
Cage	Steel Cage Nylon Cage
Bore Dia	16mm
Outer Dia	24mm
Width	16mm
Service	OEM Accept
Package	Netural package or according to requirememt
Sample time	3--5 days
Production time	It depends on the quantity

Model Number	Size(mm)	Model Number	Size(mm)
NK06/10	6x12x10	NK22/16	22x30x16
NK06/12	6x12x12	NK22/20	22x30x20
NK08/10	8x15x10	NK24/16	24x32x16
NK08/12	8x15x12	NK24/20	24x32x20
NK09/12	9x15x12	NK25/16	25x33x16
NK12/12	12x19x12	NK25/18	25x33x18
NK15/12	15x23x12	NK25/20	25x33x20
NK15/16	15x23x16	NK25/30	25x33x30
NK15/20	15x23x20	NK26/16	26x34x16
NK16/16	16x24x16	NK26/20	26x34x20
NK16/20	16x24x20	NK28/20	28x37x20
NK17/16	17x25x16	NK28/30	28x37x30
NK17/20	17x25x20	NK29/20	29x38x20
NK18/16	18x26x16	NK29/30	29x38x30
NK18/20	18x42x20	NK30/20	30x40x20
NK19/16	19x27x16	NK30/30	30x40x30
NK19/20	19x27x20	NK32/20	32x43x20
NK20/16	20x28x16	NK32/30	32x43x30
NK20/20	20x28x20	NK35/20	35x45x20
NK21/16	21x29x16	NK35/30	35x45x30
NK21/20	21x29x20	NK37/20	37x47x20
NK37/30	37x47x30	NK38/20	38x48x20
NK38/30	38x48x30	NK40/20	40x50x20

OTOTRI Combined Needle Roller Thrust Bearing NKIA NKIB 5901 5902 5903 5904 59/22

Recommend Products

1	Needle Roller and Cage Assemblies	K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
1	Needle Roller and Cage Assemblies		PCJ
2	Needle Roller and Cage Assemblies for Connecting Rod	PK
2	Needle Roller and Cage Assemblies for Connecting Rod		KBK
3	Drawn Cup Needle Roller Bearings	HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
			HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
			DCL
			HCK
4	Machined-Ring Needle Roller Bearings	RNA48, RNA49, RNA59, RNA69, NK, NKS
			NA48, NA49, NA59, NA69, NK+IR, NKS+IR
			MR
			MR+MI
			RNA49‥L, RNA49‥LL
			NA49‥L, NA49‥LL
5	Machine-ring Needle Roller Bearings Separable Type	RNAO, RNAO‥ZW
5	Machine-ring Needle Roller Bearings Separable Type		NAO, NAO‥ZW
6	Self Aligning Needle Roller Bearings	RPNA‥R
6	Self Aligning Needle Roller Bearings		PNA‥R
7	Inner ring	IR
7	Inner ring		MI
8	Clearance-Adjustable Needle Roller Bearings	RNA49‥S
8	Clearance-Adjustable Needle Roller Bearings		NA49‥S
9	Complex Bearings	NKX, NKX‥Z
			NKX+IR, NKX‥Z+IR
			NKXR, NKXR‥Z
			NKXR+IR, NKXR‥Z+IR
			NKIA
			NKIB
			AXN
			ARN
10	Cam Followers	KRM‥XH, KRMV‥XH
			KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
			KR, KR‥X, KR‥LL, KR‥XLL
			KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
			KRV, KRV‥X, KRV‥LL, KRV‥XLL
			KRT, KRT‥X, KRT‥LL, KRT‥XLL
			KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
			KRU, KRU‥X, KRU‥LL, KRU‥XLL
			KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
			NUKR‥H, NUKR‥XH
			NUKR, NUKR‥X
			NUKRT, NUKRT‥X
			NUKRU, NUKRU‥X
			CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
			CR, CR‥X, CR‥LL, CR‥XLL
			CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
			CRV, CRV‥X, CRV‥LL, CRV‥XLL
11	Roller Followers	RNAB2, RNAB2‥X
			NAB2, NAB2‥X
			RNA22‥LL, RNA22‥XLL
			NA22‥LL, NA22‥XLL
			NATR, NATR‥X, NATR‥LL, NATR‥XLL
			NATV, NATV‥X, NATV‥LL, NATV‥XLL
			NACV, NACV‥X, NACV‥LL, NACV‥XLL
			NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
			NUTW, NUTW‥X
12	Thrust Roller Bearings	AXK11, AS11, WS811, GS811
			811, 812, 893, 874, K811, K812, K893, K874, WS811
			WS812, WS893, WS874, GS811, GS812, GS893, GS874
			AXA21, ARA821, ZS
			AXB21, ARB821, ZS
13	One-way Clutches	HF
13	One-way Clutches		HFL

Customer Feedback

Company Profile

Certifications

Packing & Shipping

FAQ

Q:What the MOQ of your company?
A:Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter higher cost, sure the more you purchase the cheaper
cost you could get.

Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.

Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?

Q:Dose your factory have any certificate?
A:yes.we have ISO 9001:2008,IQNET and SGS. If you want other like CE,we can do for you.

Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.

Q:Could you tell me the material of your bearing?
A:We have chrome steel,and stainless steel,ceramic and plastic material.

Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,7-12 days to your city.)

Q:Could you tell me the payment term of your company can accept? A:T/T.Western Union,PayPal

Q:Could you tell me the delivery time of your doors?

A:If stock,in 7days or base on your order quantity

Q:Can you give me some discount?
A:Yes, you can, contact me immediately to get more discounts.
