Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa

    Buy cheap Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa from wholesalers

    Buy cheap Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa from wholesalers
    • Buy cheap Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa from wholesalers
    • Buy cheap Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa from wholesalers
    • Buy cheap Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa from wholesalers

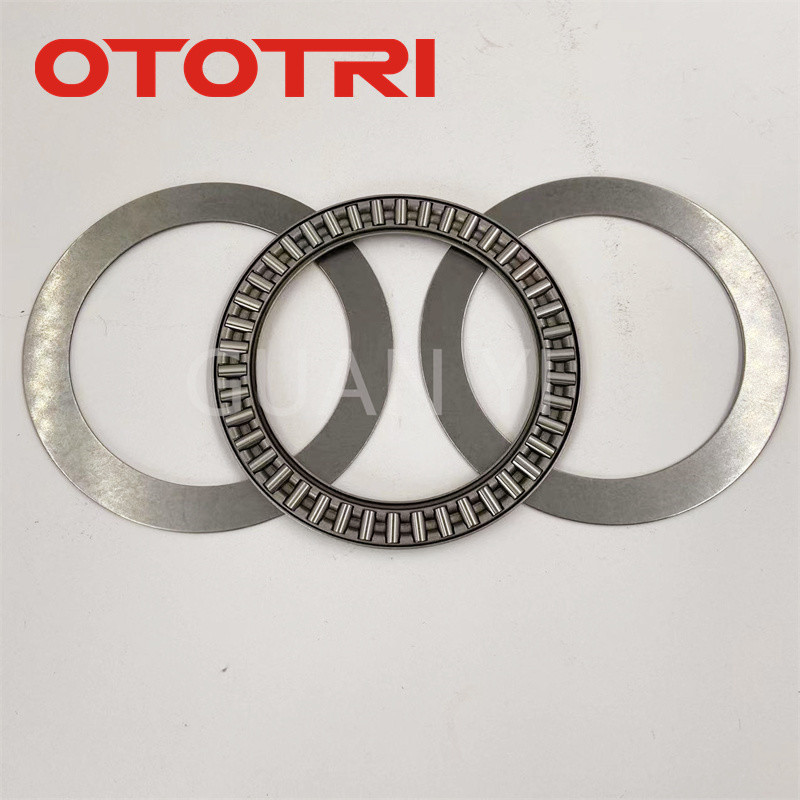

    Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa

    Ask Lasest Price
    Brand Name : OTOTRI
    Model Number : AXK3249+2AS
    Price : 0.1~100$/pcs
    Delivery Time : 5-7 days after receiving your payment
    Supply Ability : 10000pcs/week
    Certification : ISO9001,TS16949
    Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal
    • Product Details
    • Company Profile

    Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa

    OTOTRI Thrust Roller Needle Bearing AXK3249 2AS for Machinery Industries in Middle Africa


    Product Description

    Needle roller bearing

    1.Bearing Specifications :
    Needle roller bearings use long, thin cylindrical rollers to support radial loads. These needle rollers have a length that is
    typically three to four times its diameter. Needle roller bearings have a thinner cross section than other roller bearings and are ideal for limited-space applications that require carrying heavy loads. Drawn cup needle roller bearings have a deeply drawn, thin-walled outer ring. Caged drawn cup units contain a one-piece cage to guide and retain the rollers. Full-complement drawn cup units include the maximum number of rollers that can be retained by the outer shell. The drawn design allows for cost-effective accommodation of heavy radial loads. Needle roller and cage assemblies do not contain inner or outer rings. Instead, the self-contained bearing components work with a shaft or housing bore used as a raceway.

    2.Application of Bearing :
    1.Needle roller bearing: used in automobile engine, transmission, crawler wheel of excavator, compressor, crane, etc.2.Combined needle roller bearing is widely used in machine tools, metallurgical machinery, textile machinery, printing machinery and other mechanical equipment, and can make the mechanical system design very compact and smart.


    3.CROWNTRANS Bearing Features :
    Lower cross-section height and higher load capacity than traditional ball bearings.
    Small and compact for reduced overall machine size in light weighting efforts.
    Widely used in automobiles, motorcycles, printing presses, industrial robots, construction equipment and other demanding
    applications.
    Many styles to choose from including: radial, thrust and combined models, cam followers and roller followers..


    P/N

    OTOTRI Thrust Roller Needle Bearing AXK3249 2AS for Machinery Industries in Middle Africa

    Brand

    OTOTRI / OEM

    Precision

    ABEC-1

    Type

    Needle Roller Bearings

    Lubrication

    Oil

    Material

    Chrome Steel

    Package

    Plastic Bag and Box

    Payment Item

    T/T ,Western Union , Paypal ,Credit card

    Delivery time

    3-10day


    Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle AfricaThrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle AfricaThrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa


    Thrust Roller Needle Bearing AXK3249 2AS For Machinery Industries In Middle Africa

    Size Information


    Bearing Part No.

    Dc1

    Dc

    Dw

    AXK0414-TV

    4

    14

    2

    AXK0515-TV

    5

    15

    2

    AXK0619-TV

    6

    19

    2

    AXK0821-TV

    8

    21

    2

    AXK1024

    10

    24

    2

    AXK1226

    12

    26

    2

    AXK1528

    15

    28

    2

    AXK1730

    17

    30

    2

    AXK2035

    20

    35

    2

    AXK2542

    25

    42

    2

    AXK3047

    30

    47

    2

    AXK3552

    35

    52

    2

    AXK4060

    40

    60

    3

    AXK4565

    45

    65

    3

    AXK5070

    50

    70

    3

    AXK5578

    55

    78

    3

    AXK6085

    60

    85

    3

    AXK6590

    65

    90

    3

    AXK7095

    70

    95

    4

    AXK75100

    75

    100

    4

    AXK80105

    80

    105

    4

    AXK85110

    85

    110

    4

    AXK90120

    90

    120

    4

    AXK100135

    100

    135

    4

    AXK110145

    110

    145

    4

    AXK120155

    120

    155

    4

    AXK130170

    130

    170

    5

    AXK140180

    140

    180

    5

    AXK150190

    150

    190

    5

    AXK160200

    160

    200

    5
